Name: Werner® D Ring Anchorage Connector, Steel
SKU: WBB3126050
Availability: InStock

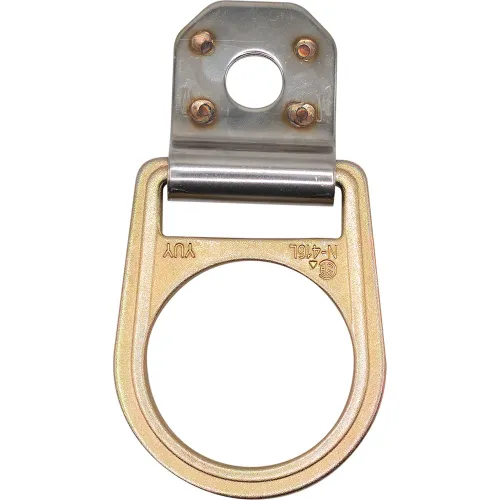

Werner® D Ring Anchorage Connector, Steel

$59.93

SKU: WBB3126050 Categories: Anchorage Connectors, Fall Protection, Safety & Security

Description

Made with alloy and stainless steel, the Werner®Co A330000 D-Ring Anchorage Connector is reusable and designed to be attached to metal structures with a minimum thickness of ¼ inch. Quickly install the D-Ring Anchorage Connector with a Grade 5 or stronger ⅝ inch – 11 steel hex head bolt and nut. Meets ANSI Z359.18 and OSHA Standards.

Features:

Made with alloy and stainless steel
Minimum Breaking Strength (MBS): 5,000 lb
2-3/8 inch D-ring
Fasten with a 5/8-inch, 11 Grade 5 steel hex head bolt and nut
Meets ANSI Z359.18 and OSHA Standards

/div>

Additional information

Weight	272.16 g
Dimensions	6 × 3.125 × 6 in
Length	6
Width	3-1/8 in
Height	6 in
Weight Capacity	000 lbs, 5
Weight	0.6 lbs
Connection Size	02/03/2008
Diameter	Hole: 5/8 in
Tensile Strength	5000 lbs
Product Type	Steel & Beam Anchors
Anchor Material	Steel
Color	Gold
Style	D-Ring
Install Type	Reusable
Material	Alloy and Stainless Steel
Attachment Type	D-Ring
Brand	Werner
Certifications	ANSI z359.18-2017, OSHA 1910 & 1926
