WaterBug? WB200 Unsupervised Water Detection System, Hardwire Powered

The WaterBug® 200 is a water detection device idea for computer rooms, document storage areas, warehouses, sump pumps and basements. WaterBug® sensors activate the alarm when a conductive bridge is formed between two contacts. Protect your assets with the WB200.

Features:

• Monitors for the presence of water. Can be used to detect the absence of water.

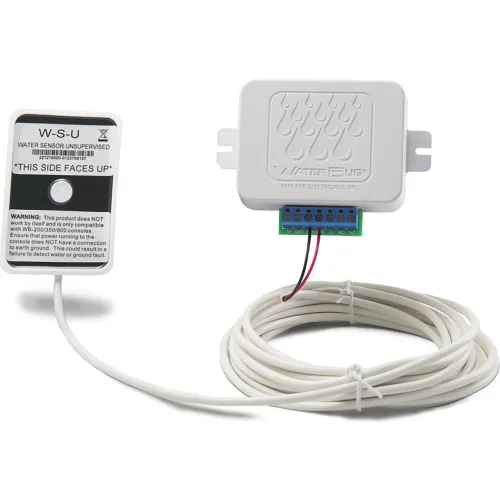

• Device includes one standard unsupervised surface sensor (W-S-U – Global#B508520)
• Devise accepts a total of 6 sensors (W-S-U – Global#B508520 & W-UC-U – Global#B508518)
• 1 to 2 sensors can be located up to 200′ (60.96m) or 3 to 6 sensors can be located up to 100′ (30.48m) away from the device for a wide area of protection. Use 18-22 AWG twisted pair wire for extension of sensors from the device
• Hard wire powered device. Ensure that the power running to the device does NOT have a connection to earth ground. This could result in a failure to detect water or ground fault.
• Power requirements of 8 to 28VDC at 35mA or 12 to 28 VAC at 100mA
• Unit operating range of 32 to 130 °F (0 to 54 °C) in non-condensing environment. Indoor use only.
• Output is 1 Form C (N.O./N.C.) with 30VDC at 1 Amp resistive
• /24VAC at 1 Amp resistive
