UltraTech Ultra-Modular IBC Spill Pallet, 4-Tank, Indoor Model, 365 Gallon Capacity

Meet EPA regulations with low-cost spill containment for multiple IBC tanks.

Storing multiple IBCs, totes or tanks can take up a lot of room, and a lot of money. But with the Ultra-Modular IBC Spill Pallet®, it can take up less of both. By connecting the containment sumps and sharing walls, these units offer an economical solution that takes up a relatively small amount of space.

Features:

• Each IBC tank sits on a heavy-duty spill pallet with a capacity of 9,000 lbs. UDL
• Each of the low profile spill pallets has a containment capacity of 75 gallons and measures 62″ x 62″ x 8.75″

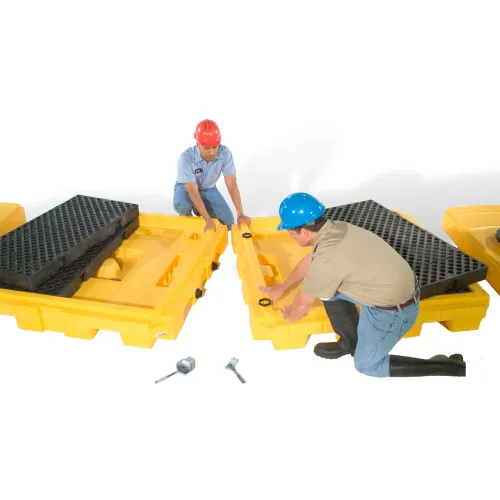

• Any number of the modular spill pallets can be connected together with bulkhead fittings. Two (2) bulkhead fittings are used to connect one pallet to the next
• To increase containment capacity, a 65-gallon capacity expansion tank is available
• “Flow-through” bulkhead fittings (1.25-inch diameter) are used to connect spill pallets and expansion tanks together
• Bulkhead fittings allow spills to be channeled throughout the containment system, thereby “borrowing” containment capacity from adjacent spill pallets and expansion tanks
• Constructed of 100% polyethylene, eliminating the potential for rust and corrosion. They offer excellent chemical resistance to a broad range of chemicals including acids, solvents, and oils
