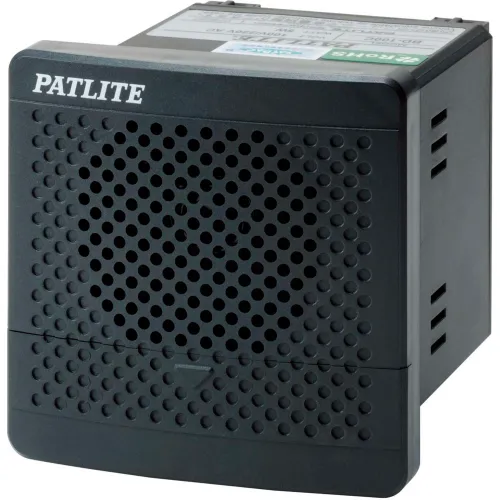

Patlite BD-24AE-K 4-Channel Smart Alert Alarm, 32 Pre-Programmed, Dark Gray, DC24V
$359.93
Description
The panel-mount BD Series Smart Alert stores 32 different sounds – melodies, chimes, and alarms. There are 16 groups with 4 sounds each (groups A to P), where the user can select four sounds to make group “P” by using an SD card (sold separately – SDV-2GP recommended for best results). These sounds are suitable for noisy factories. Maximum output level of 90dB at 1m is suitable for use in a noisy factory.
Features:
- 32 sounds are pre-recorded in one unit which can be used for various applications
- Sound output level and sound group can be selected by rotary dial stored inside the front cover for easy operation even after installation
- Select one sound group from A to P to playback 4 pre-recorded sounds
- A new sound group can be created from the 32 sounds by using an optional SD Card (sold separately)
- UL (component recognized), CE, and RoHS compliant
/div>
Additional information
| Dimensions | 3.15 × 3.15 in |
|---|---|
| Length | 3.15 in |
| Width | 3.15 in |
| Depth | 3.73 in |
| Body Color Family | Dark Gray |
| Sounds | 32 Pre-Programmed |
| Mounting Location | Panel Mount |
| Body Style | Square |
| Voltage | DC24 V |
| Material | ABS Thermoplastic |
| System Of Protection | IP54 |
| Description | 4-Channel Smart Alert Alarm |
| Manufacturers Part Number | BD-24AE-K |
| Audible Style | 32 pre programmed sounds |
| Brand | Patlite |
| Certifications | CE, cUL, RoHS, UL |
