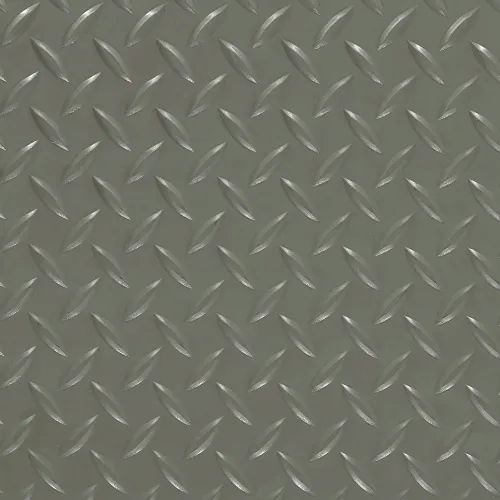

M+A Matting Military Diamond Switchboard Plate Mat, 3/16″ Thick, 3′ x 75′, Gray

Military diamond switchboard designed to protect workers in high voltage areas.

Features:

• Meets strict military specification standard MIL-DTL15562G
• Type III – PVC runner
• Dielectric strength: the floor covering shall not fail at less than 30,000 volts when tested as specified – MIL-DTL15562G
• 3/16″, non-conductive
• 36″ x 75′ Rolls

Standards & Testing

• Voltage Test MIL-DTL-15562G, Min. 15,000V for 1 Minute, Pass
• Dielectric Strength Test MIL-DTL-15562G, Min. 30,000V, Pass
• Visual/Dimensional Exam MIL-STD-407, Any Visual Degradation, Pass
• Tensile Strength ASTM D412 DIE C, Min. 800PSI: 1800PSI, Pass
• Ultimate Elongated ASTM D412 Die C, Min 75%: 200%, Pass
• Hardness ASTM D2440, 95 +/-5 (SHORE A): 90, Pass
• Critical Radiant Flux, ASTM E648, Min 0.45 W/CM2:: 0.81 W/CM2, Pass
• Smoke Density ASTM E662, Max 450: 400, Pass
• Flexibility Test FED-STD-501 Method 3111 Shall Pass, Pass
• Dimensional Stability Test ASTM D1204, +/-0.020 IN/FT: 0.009 IN/FT, Pass
• Gloss Test ASTM D2457, 50: 70, Pass
• Color FED-STD-595, As Specified, Pass

Cleaning Instructions:

• Scrubbing with a deck brush (when needed)
• Using detergent with a neutral pH
• Rinsing with a hose or pressure washer
• Mat should be laid flat or hung to dry
• Always make sure the mat is dry before placing it back in service
