Name: Haws® AXION® MSR, 8904, Counter-Mount Eyewash Station Drench Hose
SKU: WBB549139
Availability: InStock

Haws® AXION® MSR, 8904, Counter-Mount Eyewash Station Drench Hose

$913.50

SKU: WBB549139 Categories: Drench Hoses, Eyewash Stations & Showers, Safety & Security

Description

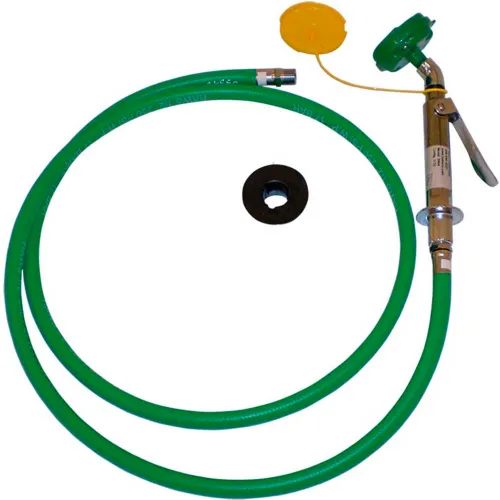

Haws® Axion MSR Counter-Mount Eyewash Station Drench Hose

Model 8904 counter-mounted eye/face wash and body spray shall include an AXION®MSR eye/face wash head which features an inverted directional laminar flow which achieves Zero Vertical Velocity” supplied by an integral 3.7 gpm flow control. The unit shall also include a chrome plated brass stay-open squeeze lever valve, 8 foot (243.8 cm) 250 psi (17.2 bar) green hose with chrome-plated swivel fitting at one end, Noryl plastic deck flange with integral key slot for proper positioning of unit, universal sign, and 1/2″ NPT inlet. In order to comply with state codes the use of a vacuum breaker is required with all hand held eye/face wash body spray units (Haws offers model SP212)

Additional information

Dimensions	5 × 2 × 10.41 in
Length	5 in
Width	2 in
Height	10-13/32 in
Head Diameter	2-1/4 in
Inlet Size	1/2 IPS in
Flow Rate	6.25 gal/min
Product Type	Eyewash Station Drench Hose
Eyewash Handle Material	Chrome Plated Brass
Color	Green
Series	AXION®
Pressure	250 PSI psi
Number of Heads	1
Mounting Location	Deck Mount
Valve Type	Chrome Plated Brass Stay Open
Description	Haws® Laboratory Units, Model 8904
Manufacturers Part Number	8904
Fitting Material	Chrome Plated Brass Swivel
Eyewash Activation	Squeeze Handle
Brand	Haws
ANSI Certification	ANSI Z358.1-2014
ADA Compliant	No
