Name: Edwards Signaling 6538-G5 Call For Assistance Kit
SKU: WBB664150
Availability: InStock

Edwards Signaling 6538-G5 Call For Assistance Kit

$299.93

Description

Double pole single throw switch
High intensity strobe
Neutral white color
Fits single gang box
The Edwards 6538-G5 Call For Assistance system is designed for areas where a call-for-help or an emergency switch is required.

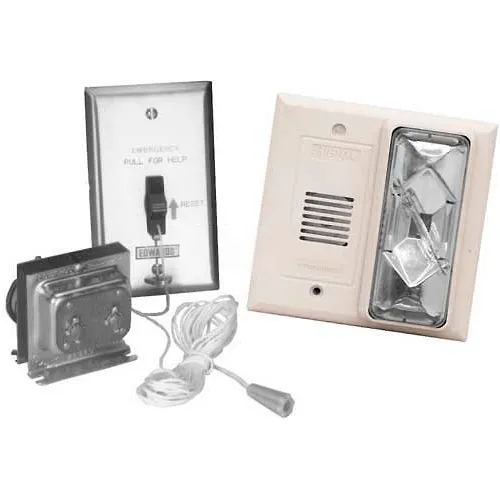

The kit consists of a Cat. No. 6536-G5 horn/strobe for audible and visual signaling a Cat. No. 6537 emergency pull cord station and a Cat. No. 592 transformer.
Each component may also be ordered individually.
Use in health care facilities public rest-rooms and handicapped areas.
6536-G5 Horn/Strobe The Cat. No. 6536-G5 Horn/Strobe is designed for use in a single gang 2″ (51mm) x 4″ (102mm) box located over the door.
Each unit contains an audible horn signal which generates an 82 dBA sound pressure level at 10 ft. and a high intensity strobe.
592 Transformer The Edwards Cat. No. 592 transformer is used to power the horn/strobe.
It is equipped with a grounding wire and is suitable for installation in both plastic and metal boxes.
6537 Pull Cord Stations The Cat. No. 6537 pull cord station provides emergency call activation and reset. It has a stainless steel face plate with a DPST switch.
