Allegro 9248-01 Deluxe Supplied Air Shield/Helmet System, 1 Worker, 50′ Hose & ADF

Allegro 9248-01 Deluxe Supplied Air Shield/Helmet System, 1 Worker, 50′ Hose & ADF

$5,998.50

Description

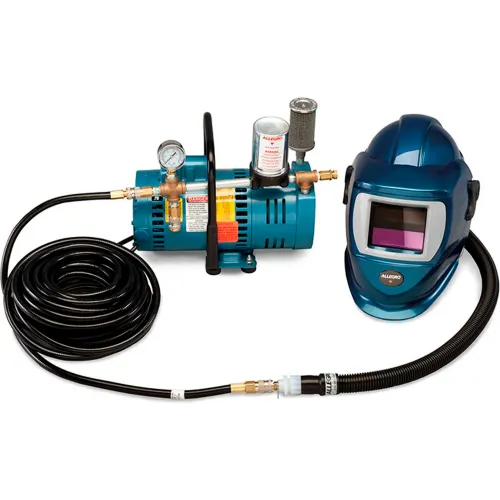

Allegro’s Deluxe Supplied Air Shield and Welding Helmet is performance proven and a cost effective system used by foundries, aluminum plants, mines, chemical plants, refineries, auto manufacturers, metal working and fabrication. The Supplied Air Respirator delivers a constant and powerful supply of breathable air from a clean air source. They include one shield/ welding helmet, a ¾ hp ambient air pump and 50 feet of breathing hose. NIOSH approved/ANSI certified “all in one” system provides respiratory, head, eye and face protection.

Additional information

Weight 35380.02 g
Dimensions 50 in
Weight

78 lbs

Size

One Size in

Hose Length

50 ft

Product Type

Supplied Air System

CFM

0-10 CFM@ 60 Hz; 0-8 Cfm @ 50 Hz (Adjusted Via Pressure Relief Valve) CFM

Power Requirements

115V(12 A) 230V(5.9 A), 115V/230V AC, Single Phase

Horsepower

3/4 HP HP

Color

Blue

People Served

1

For Use With

Works Well In A Variety Of Environments Including Painting Or Refinishing Booths

Includes

3/4 HP Ambient Air Pump, 50' Hose, One Air Shield/Helmet

Material

ABS, Polycarbonate, PVC, Steel

Description

Deluxe Supplied Air Shield w/Welding Helmet System

Package Quantity

1

Manufacturers Part Number

9248-01

PSI

15 PSI Max psi, 2-12 PSI Working

Couplers

OBAC

Brand

Allegro Industries

Warranty

12 Months From The Date Of Purchase

Certifications

ANSI Z87.1+, ANSI Z89.1 Type 1 Class G, CSA Certified, UL Recognized
